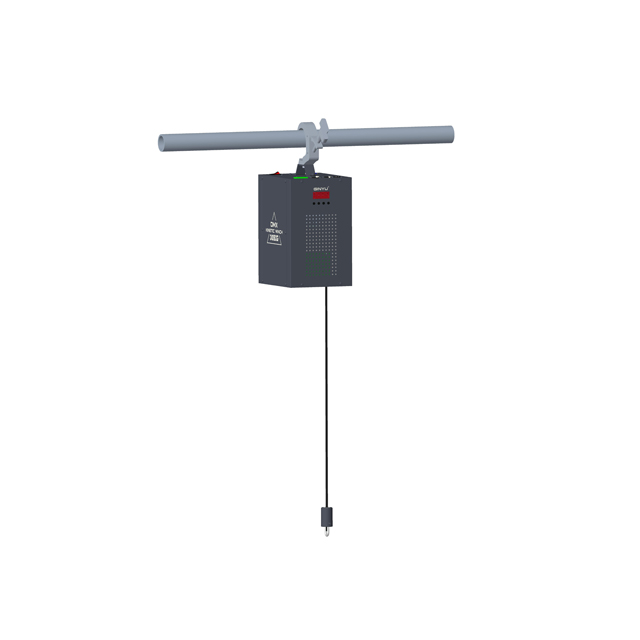

GT-510S

Lifting height : 0-600 CM
Safe load: Less 30KG
Fast speed: 75CM/s
Control model: DMX-512
Channel: 3CH
Connectors: 3 pin XLR connector in and out
Screen: 4 Digital tube display
Load-bearing cable diameter: Diameter 6MM
Synchronization error: Less 6MM
Adaptation voltage: AC90V-240V/50-60HZ
Total power: Less 180W
IP Rating: IP20 Not waterproof
Environment temputure: - 10℃~50℃
Safety security: Physical braking, electronic protection
Installation: Vertical lifting
Motor size: 192MM*237MM*345MM
Motor weight: 9.7KG
Package: Carton or Fly case
DMX Signal Cable: 2*0.5M㎡*1.5M*1 pcs
Power Cable: 3*1.25M㎡*1.5M*1 pcs
Safety Cable: 3MM*600MM*1 pcs
Aluminum hook: Thick 30MM* Height 110MM* Width 82MM*2 pcs
Availability:

Lifting height
0-600 CM
Safe load
Less 30KG
Fast speed
75CM/s
Control model
DMX-512
Channel
3CH
Connectors
3 pin XLR connector in and out
Screen
4 Digital tube display
Load-bearing cable diameter
Diameter 6MM
Synchronization error
Less 6MM


Adaptation voltage
AC90V-240V/50-60HZ
Total power
Less 180W






IP Rating
IP20 Not waterproof
Environment temputure
- 10℃~50℃
Safety security
Physical braking, electronic protection
Installation
Vertical lifting
Motor size
192MM*237MM*345MM
Motor weight
9.7KG
Package
Carton or Fly case






DMX Signal Cable
2*0.5M㎡*1.5M*1 pcs
Power Cable
3*1.25M㎡*1.5M*1 pcs
Safety Cable
3MM*600MM*1 pcs
Aluminum hook
Thick 30MM* Height 110MM* Width 82MM*2 pcs
